SignalSafe / Manitowoc Crane Status Light Bar / Ampel

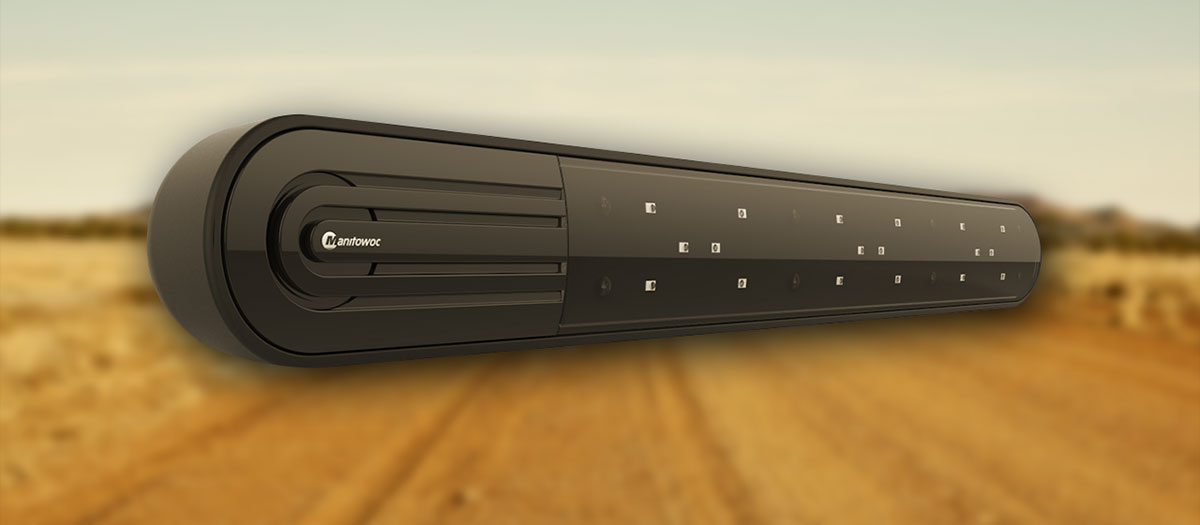

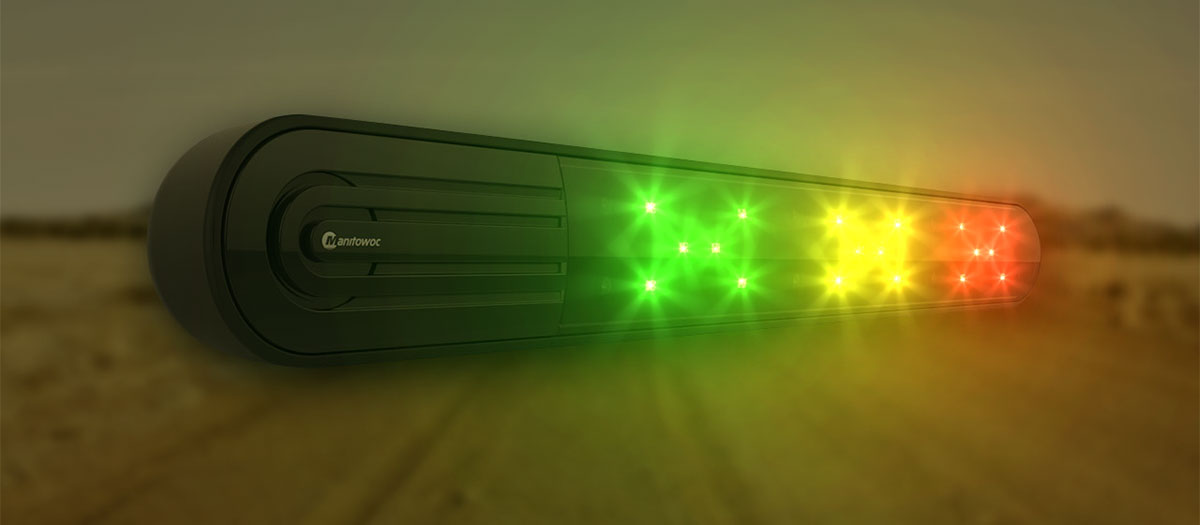

SignalSafe-beforeSignalSafe-after

The Signal Light Bar is designed to clearly signal the load status of mobile cranes using visual and acoustic means. The equipment consists of the main and LED printed circuit boards (PCBs). The main PCB contains power supply, LED driver, micro-controller and CAN bus sections. The LED PCB contains 3 color groups (green: 530 nm, amber: 590 nm, red: 627 nm) of 6 high-power LEDs each (provides) good visible  signaling even in high ambient light. Power and communication wires are routed through shielded cable with an M12 industrial connector. Internally, the cable wires are soldered to the main PCB. There is a separately mounted buzzer for producing a penetrating acoustic alarm indication. It is connected by 2 wires soldered to the main PCB.

Features

3×6 High brightness LEDs for WARNING lights (GREEN, AMBER, RED)

The LED PCB contains 3 color groups (green: 530 nm, amber: 590 nm, red: 627 nm) of 6 high-power LEDs each (provides) good visible  signaling even in high ambient light.

Available also with warning BUZZER

There is a separately mounted buzzer for a penetrating acoustic alarm indication.

Compliant to EC Machinery Directive Requirements

DIRECTIVE 2006/42/EC – The Directive 2006/42/EC of the European Parliament and of the Council of May 17, 2006 is a European Union directive concerning machinery and certain parts of machinery.[1] Its main intent is to ensure a common safety level in machinery placed on the market or put in service in all member states and to ensure freedom of movement within the European Union by stating that “member states shall not prohibit, restrict or impede the placing on the market and/or putting into service in their territory of machinery which complies with [the] Directive”.

Also sold as AMPEL signal/audio bar

Also sold as AMPEL signal/audio bar for EC Machinery Directive Compliance with direct connection to Manitowoc Cranes.

Waterproof / Shockproof / Dust-proof

All Aveo lights are waterproof, dust proof, and inert to most environmental conditions as they are all tested to categories of DO-160 exceeding the applicable requirements by far in external laboratories experienced in compliance demonstration of EASA ETSO and FAA TSO appliances.
