MadMaxx Rax

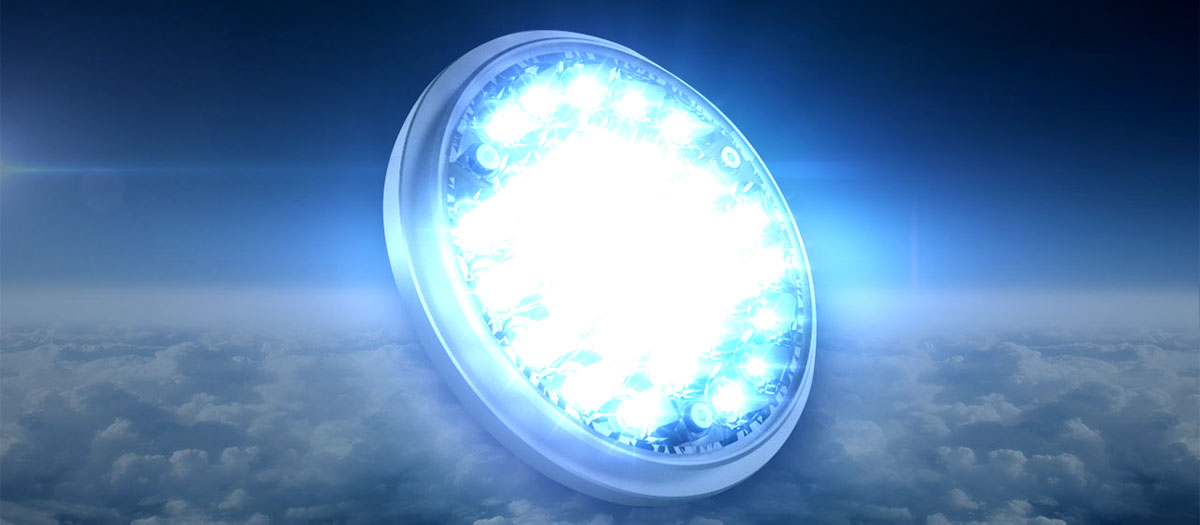

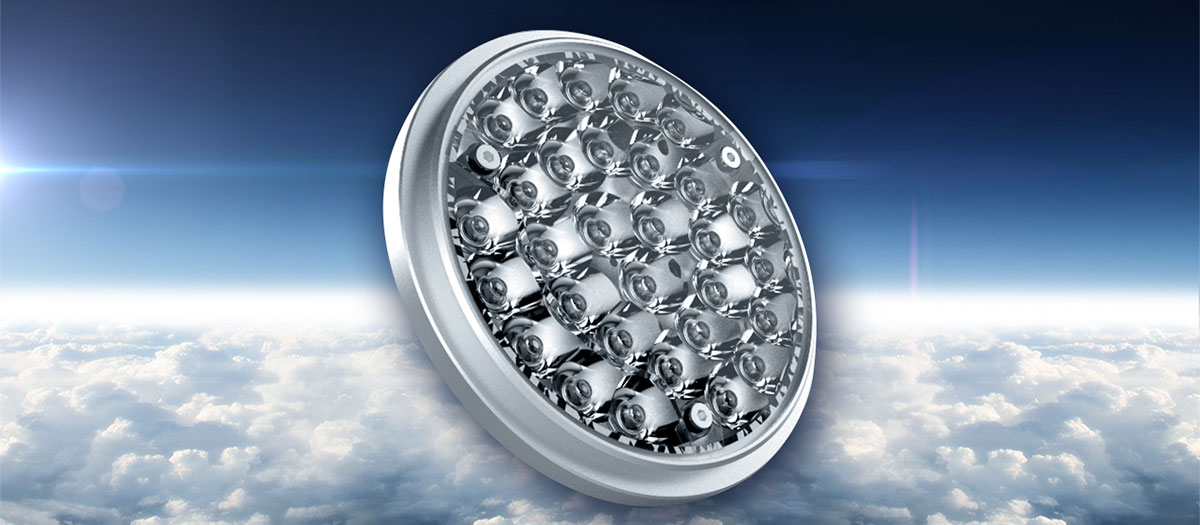

AveoEngineering introduces the exclusive next-generation AveoMaxx Hercules™ Drop-In ->Replacement for Legacy Lights. A PAR 36 drop-in with the legendary Hercules power!

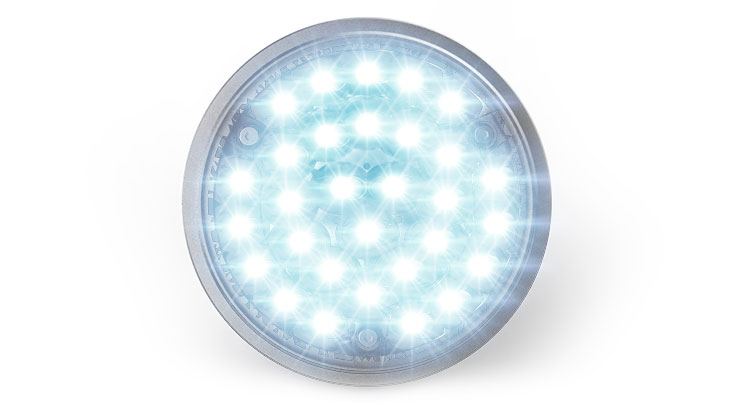

30 High brightness LEDs for LANDING or TAXI light coverage

Packed with 30 ultra high brightness CREE aviation white LEDs for LANDING or TAXI light coverage

Lens with beam angle for LANDING light coverage

Lenses are available in 10, or 16 degrees.

Lens with beam angle for TAXI light coverage

Lenses are available in 16, 25 or 40 degree.

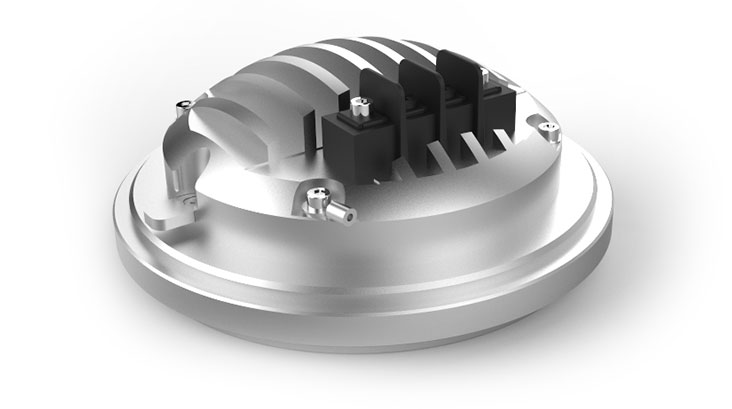

Easy to install

This light drops-in to existing PAR 36 legacy housings in seconds

Waterproof / Shockproof / Dust-proof

All Aveo lights are waterproof, dust proof, and inert to most environmental conditions as they are all tested to the most challenging categories of DO-160G by INDENDENT AVIATION AUTHORITY (EASA) Certified Laboratories. NO in-house DO160 testing is permitted at Aveo just as you would not let a fox in a henhouse, and our competitors cannot match this testing integrity.

Environmentally Friendly

The Hercules™ uses far less power than competitive products illuminated by mercury-arc, high intensity discharge, or halogen lamps, which means they help to reduce air pollution from carbon emissions. Mercury and Lead-free, this RoHS compliant environmentally – friendly technology helps reduce power consumption and the amount of hazardous waste entering the environment. Finally, a “green” aircraft light!

Number of LED: 30
Input voltage: from +9 to +36 VDC
Input current: 3.2A at 28V ±10%
Output power:

90 W

Transcend voltage: 2 seconds +80V
Under-voltage lockout: 9 V DC, not more
Over-voltage lockout: 36 V DC, not less
Ambient temperature: from -40°C to +85°C
(from -40°F to +185°F)
Lens (Beam pattern):

Landing light version:
10° viewing angle - symmetrical beam

Taxi light version:
40° viewing angle - asymmetrical beam

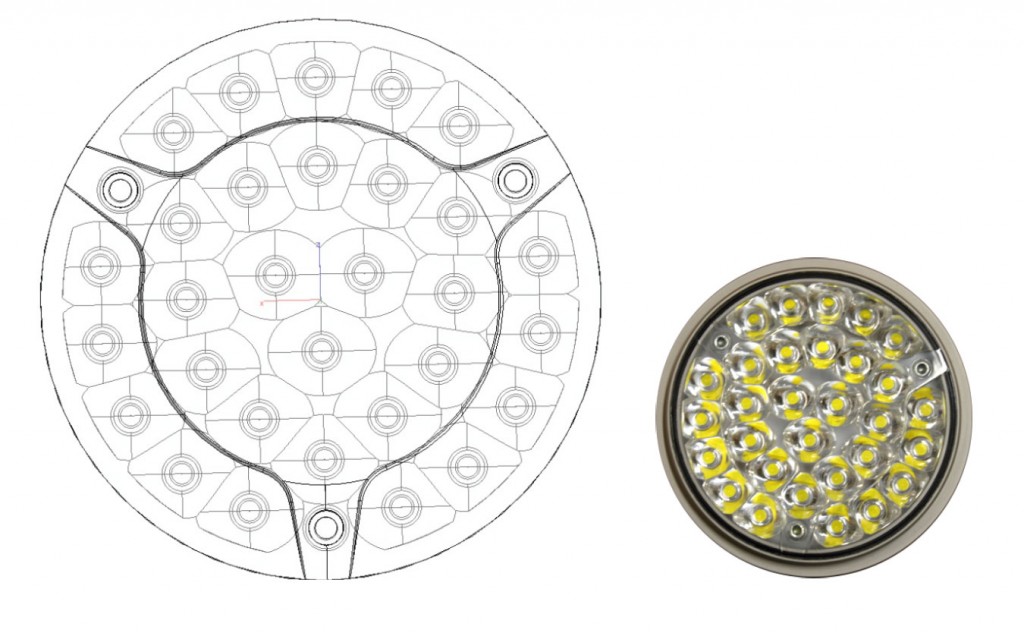

Hercules Drop-In Taxi

Hercules Drop-In Landing

Light Intensity (calculated): 166.000 cd
Color and shade: cool white, 5000K – White
Programmable Soft-Start: less than 50mS
Overheat protection: temperature dependent decrement intensity
Weight: 510g / 1.124 lb
Useful life: not less than 30.000,0 aircraft flight hours
Dimension: 4.33” Round x 1.79” (D = 110mm, H = 45.7mm)
Material: a. Housing/Heatsink: Aluminum Alloy, natural anodizing
b. Lens: Clear PMMA

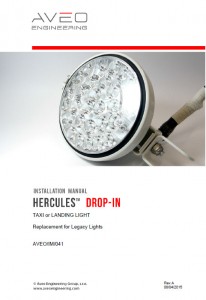

Installation Manual

Coming soon
