EyeBeam Dome NVIS

Dome

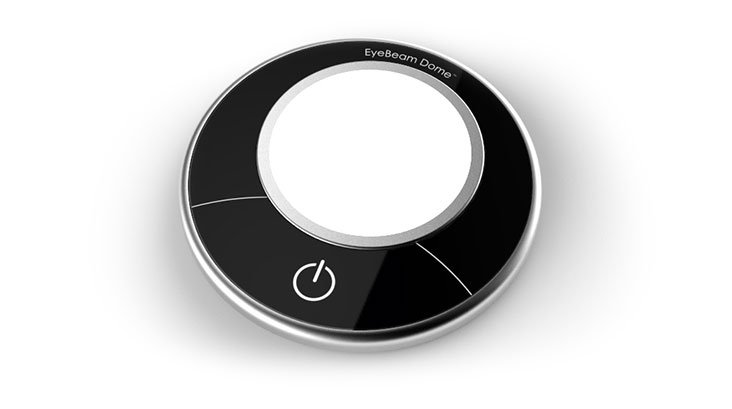

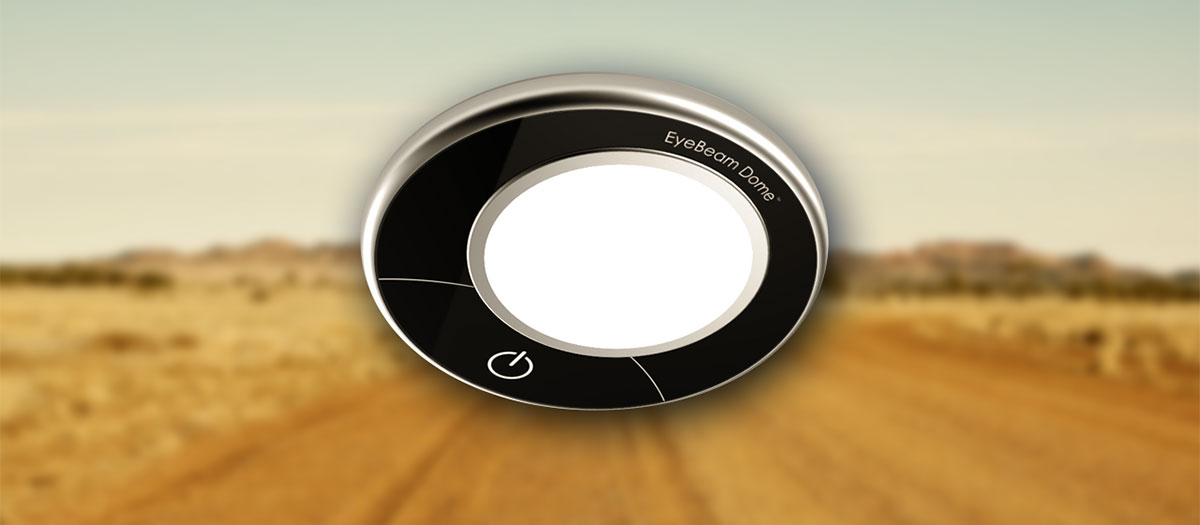

The EyeBeam Dome™ was developed to meet the requirements of an interior dome light for all vehicles, that would complement the amazing Aveo EyeBeam™ products, and their unique capacitive touch-controls. Long gone are the days of mechanical switches which can corrode and spark, etc.

Features

Available in Visible White or NVIS Compatible White only

WIDE beam angle 130°

This light features a wide DIFFUSE white color that eliminates glare.

Touch control

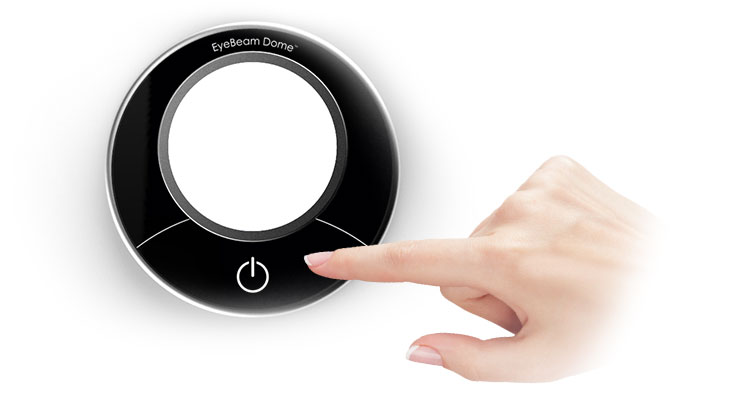

Capacitive touch control works with your finger or even flight gloves. Can be controlled by a separate wall mounted remote.

Easy to install

Simple non-screw installation means low overhead space required.

Waterproof / Shockproof / Dust-proof

All Aveo lights are waterproof, dust proof, and inert to most environmental conditions as they are all tested to categories of DO-160 exceeding the applicable requirements by far in external laboratories experienced in compliance demonstration of EASA ETSO and FAA TSO appliances.

3 Year warranty

3 year warranty on materials and workmanship.

Diameter: 63 mm / 2.48”
Weight: 80 g / 2.82 oz
Operating Voltage Range:

9 – 36 Vdc

Nominal Voltage: 12V or 24V
Current ( @12V): 0.2A (full brightness)
LED Color: Neutral White
Wide viewing angle 115°-130°

Installation Manual


Coming soon
