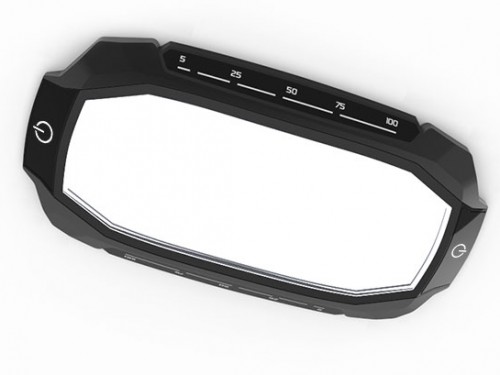

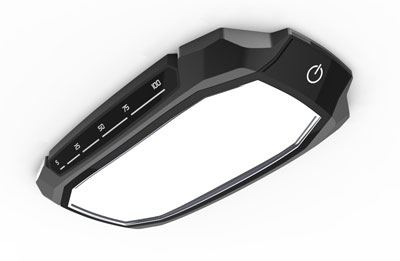

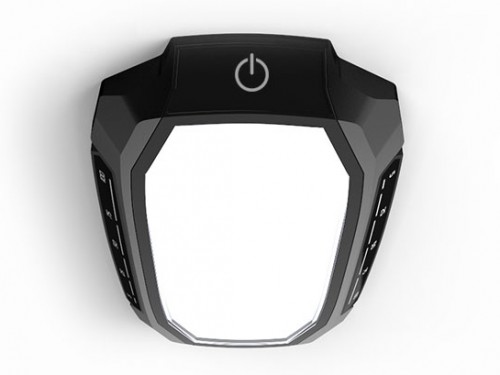

EyeBeam Dome NVIS – Panel

Dome-panel

The EyeBeam Dome™ was developed to meet the requirements of an interior dome light for all aircraft, that would complement the amazing Aveo EyeBeam™ products, and their unique capacitive touch-controls. Long gone are the days of mechanical switches which can corrode and spark, etc.

Features

MAIN features

  • Available in Visible White or NVIS Compatible White only
  • Aveo proprietary and industry first capacitive touch controls for On/Off, Adjustable “slider” Intensity Level, and Color Selection with bare hand or gloves. No mechanical switches to get dirty or fouled
  • Hermetically sealed product that is INERT to vibration, shock and water
  • 80 VDC over-voltage protection, 9 to 32 VDC input voltage
  • Aveo exclusive Linear COB light source technology, which eliminates the bright white “spots” or “dots” of our competitors lights, which produces UNIFORM, NON-GLARE DIFFUSED light. Also can have multiple colors in multiple sections, an Aveo Exclusive.
  • Notice the lack of spots or dots as other LED lights are known for. This eliminates glare and provides a more uniform diffused light output.
  • Aveo’s industry leading multi-layer, metal core PCB technology provides the PROVEN lowest EMI in the industry
  • Aveo’s exclusive NanoCloak™ nano technology membrane coating provides self-cleaning, anti-microbial properties to the light fixture
  • Operational temperature range from Minus 50°C to Plus 85°C
  • Operating Voltage to MIL-STD-1275
  • IP68 Waterproof Construction
  • Black Anodized Aluminum Matte Finish
  • Qualified to MIL-STD-810G 514.6 Category 20, Test I and III Vibration Test
  • Qualified to MIL-STD-461F, Sections CE 102, RE 102, RS 103
  • ISO Plots will be supplied only after customer provides mounting info with Focal length and Target Illumination area information

WIDE beam angle 130°

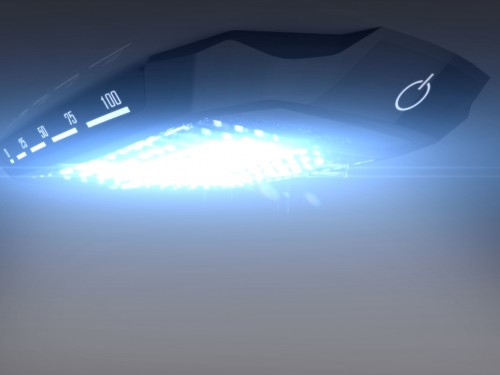

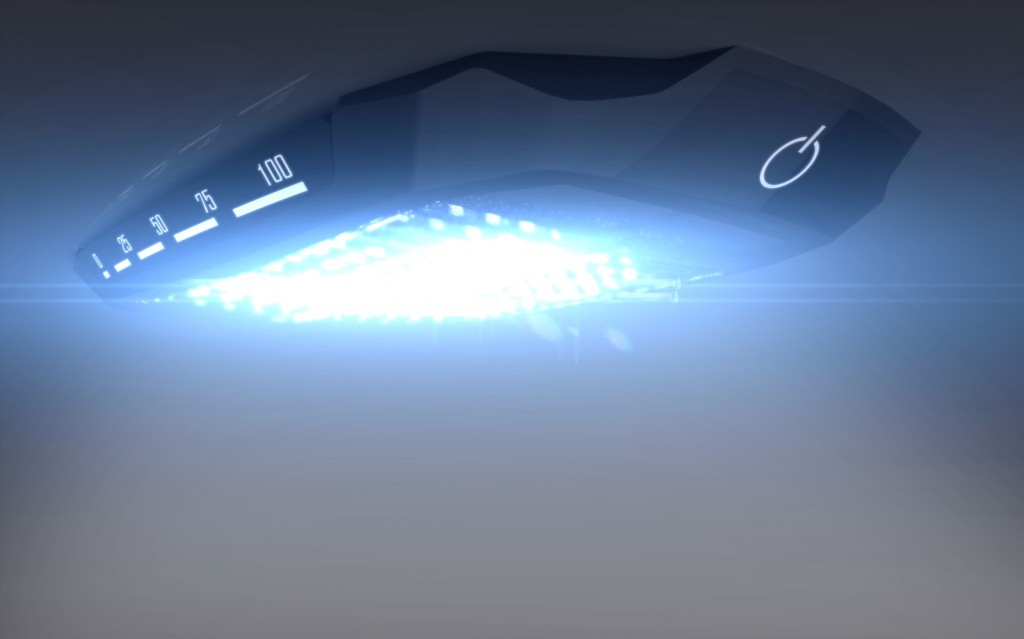

This light features a wide DIFFUSE white color that eliminates glare.

Touch control

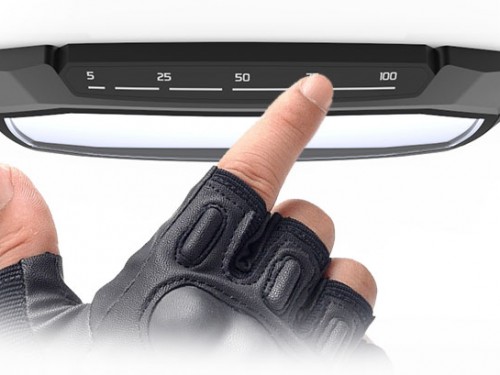

Capacitive touch control works with your finger or even flight gloves. Can be controlled by a separate wall mounted remote.

Easy to install

Waterproof / Shockproof / Dust-proof

All Aveo lights are waterproof, dust proof, and inert to most environmental conditions as they are all tested to categories of DO-160 exceeding the applicable requirements by far in external laboratories experienced in compliance demonstration of EASA ETSO and FAA TSO appliances.

3 Year warranty

3 year warranty on materials and workmanship.
